F e r o s l i t

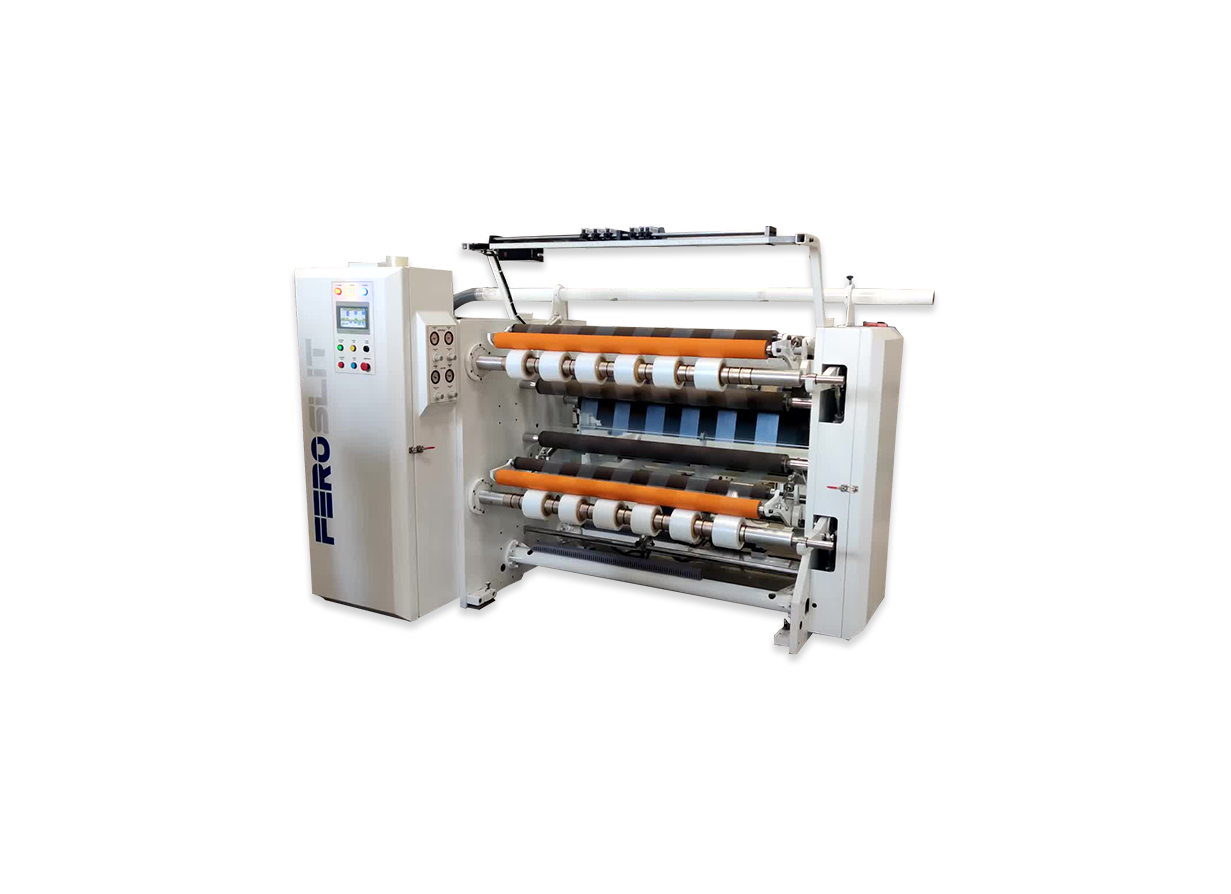

FS-300

Cantilever Type Slitter Rewinder

Materials

All type of laminates, LDPE,BOPP,PET,HDPE,CPP,Paper,PVC film grade.

Download Brochure

Features Of The Machine

  • Robust machine structure to avoid vibration at high speeds.

  • Shaftless un-winder system with motorized IN/OUT system.

  • 2 drives system

  • Touch screen interface

  • Differential shaft technology with ball type quick locks

  • Automatic close loop tension control throughout varying diameters and speeds

  • Off-loading Stand

  • Digital Edge/Line web guiding system

Machine Specifications

Speed 300 MPM
Width 1000mm / 1300mm
Minimum slit width 50mm
Unwinder Diameter 700mm
Unwinder weight 500 kg
Unwinder core diameter 3" (6" optional)
Rewinder diameter 500mm
Rewinder max weight 150 kg per shaft
Rewinder core diameter 3" (6" optional)
